HY050HDPF003-280-N 5inch 720x1280 280nits

HY050HDPF003-280-N 5inch 720x1280 280nits

5'' 720x1280 4-Lane MIPI
5inch TFT LCD Display with 720x1280 HD Resolution 280 Nits Brightness and 4-Lane MIPI Interface for Industrial Use

#PN: HY050HDPF003-280-N

Wide range of options/solutions suitable for your projects.
Custom touch/high brightness solutions to meet your needs.
Support small quantities for trial orders.

Aliexpress Shop

5inch TFT LCD Display with 720x1280 HD Resolution 280 Nits Brightness and 4-Lane MIPI Interface for Industrial Use

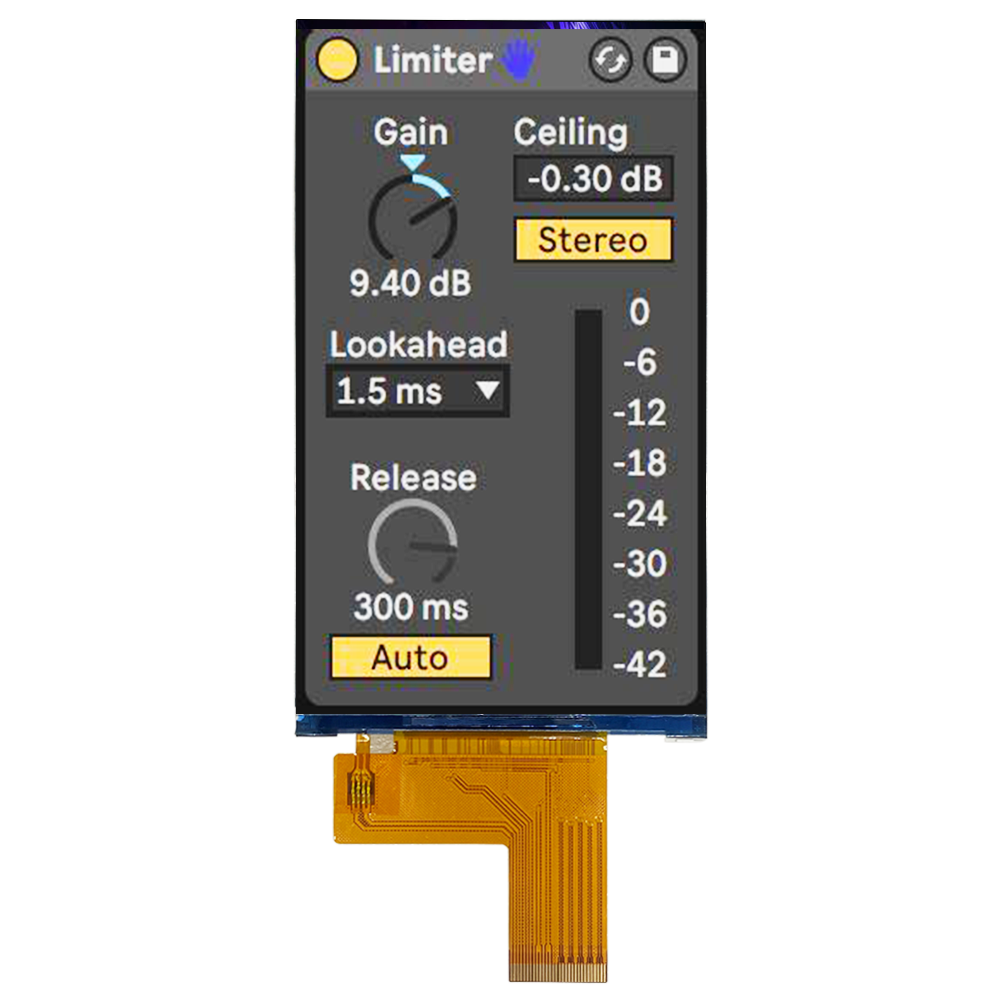

The HY050HDPF003-280-N is a 5-inch TFT LCD display with a high-definition resolution of 720x1280 pixels, offering exceptional clarity and detailed visuals. Featuring IPS technology, this display provides wide-angle viewing from all directions, making it ideal for user interfaces and applications that require superior visual quality.

This module uses the ST7703 driver IC and a 4-Lane MIPI interface, which can be customized to suit different project needs. With a brightness of 280 nits (adjustable), the display is suited for environments with moderate lighting. It has an extended operating temperature range of -20°C to 80°C, providing reliability across diverse industrial applications. The display is built to last with a 50,000-hour lifetime and complies with RoHS and REACH standards. Optional touch panel and customization for the interface, brightness, and shape are available to meet specific project requirements.

Main Parameters preview:

ATTRIBUTE	VALUE
• Part Number:	HY050HDPF003-280-N
• Display Diagonal(Size):	5 inch
• Display Mode:	TFT,Transmissive / Normally Black
• Resolution(Pixel):	720x1280
• Viewing Direction:	IPS/All O'clock
• Driver IC:	ST7703
• Interface(Customizable):	4-Lane MIPI
• Pinout(Changeable):	30 Pin
• Outline Dimension(mm):	*62.1110.41.62 mm*
• Active Area(mm):	*62.1110.4 mm**
• Brightness (Adjustable):	280 nits
• Module lifetime(Hours):	50,000 Hours (LED)
• Operating temperature(°C):	OT:-20~80℃
• Compliant:	RoHS; REACH
• Touch or not:	LCM;No touch but Optional
• Support to Custom:	Interface / Brightness / Shape / Touch Panel

Recommended Usage

The HY050HDPF003-280-N display is ideal for consumer electronics, industrial control systems, handheld devices, and automotive displays, where high-definition visuals and durability are critical. Its customizable interface and optional touch panel make it suitable for a wide range of applications.

For more products' parameters and its' configuration, please kindly contact the sales person for:

1、Full Specification / Datasheet.

2、Various Touch options in need.

3、Tech supports to work the display.

4、Display questions relating to your applications and long-term supply relationship.
